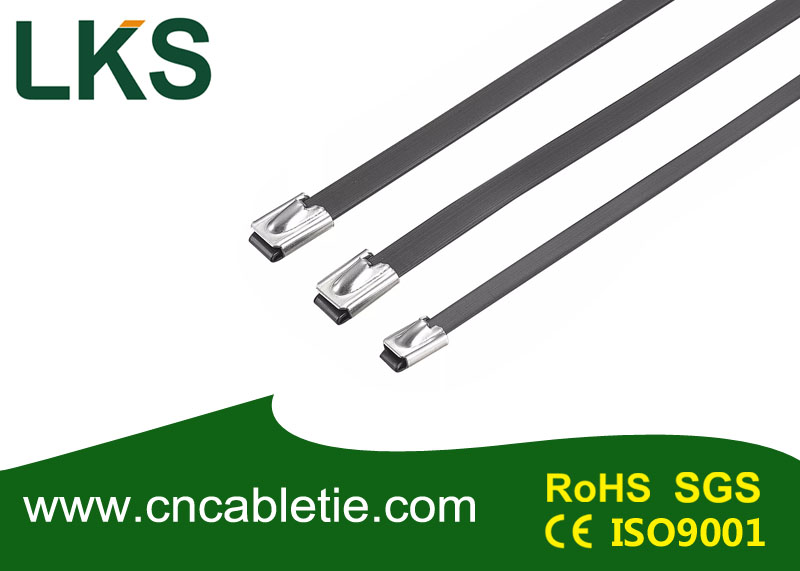

Pvc coated ball-lock stainless steel cable tie.

Product Categories

YUEQING LKS CABLE TIE CO.,LTD

Contact Now

Pvc coated ball-lock stainless steel cable tie.

Brand Name : LKS

Certification : RoHS,SGS,CE,ISO9001

Place of Origin : China

MOQ : 10000pcs

Payment Terms : L/C, T/T

Supply Ability : 100000pcs per day

Delivery Time : 5days

Packaging Details : polybag

Contact Now

Technical Information:

Size: length: 150-1100mm, width: 5.6/9/16mm, Thickness: 1/1.1/1.2mm.
Working temperature: -40℃ ~ 85℃.
Material: SS304/SS316.
Tensile Strength:35/80,45/100,90/200(kgs/lbs).
Colour: Black.
Packing:100pcs/bag.

Product Feature

Coating: PVC.
Flammability: Fireproof.
UV resistance.
High tensile strength.
High resistance to Acetic acid, Alkali acid, Sulphuric acid, Corrosion, etc.In general extremely resistant to most hostile environments.

Application Fields

1. The fixing of signboard, signal lights and related traffic facilities on municipal project.

2. The bundling of electric cables, street lamps, and power supplies in electrical engineering

3. Fire fighting, petrochemicals, vehicles, aviation, wine making, paper making and so on, tightening at the joints of air pipes, water pipes, hydraulic pipes, etc.

Item No.	Length		Width		Thickness		Max. Bundle Dia.		Min. Bundle Dia.		Min.Tensile Strength		Recommend Installation Tool
Item No.	mm	inch	mm	inch	mm	inch	mm	inch	mm	inch	lbs	kgs	Recommend Installation Tool
STP-560150	150	5.9	5.6	0.22	1	0.039	37	1.46	12.7	0.5	80	35	LKS-L1
STP-560200	200	7.9					50	1.97
STP-560250	250	9.8					63	2.48
STP-560300	300	11.8					75	2.95
STP-560350	350	13.8					89	3.5
STP-560400	400	15.7					102	4.02
STP-560450	450	17.7					115	4.53
STP-560500	500	19.7					130	5.12
STP-560550	550	21.7					143	5.63
STP-560600	600	23.6					154	6.06
STP-560650	650	25.6					169	6.65
STP-560700	700	27.6					182	7.17
STP-560800	800	31.5					208	8.19
STP-560900	900	35.4					229	9.02
STP-900200	200	7.9	9	0.047	1	0.039	52	2.05	25.4	1	100	45	LKS-L1
STP-900250	250	9.8					65	2.56
STP-900300	300	11.8					78	3.07
STP-900400	400	15.7					102	4.02
STP-900500	500	19.7					128	5.04
STP-900600	600	23.6					154	6.06
STP-900700	700	27.6					180	7.09
STP-160350	350	13.8	16	0.63	1.2	0.047	89	3.5	25.4	1	200	90	LQA-1 LKA-1
STP-160450	450	17.7					115	4.53
STP-160550	550	21.7					141	5.55
STP-160700	700	27.6					179	7.05
STP-160850	850	33.5					216	8.5
STP-1601100	1100	43.3					280	11.02
